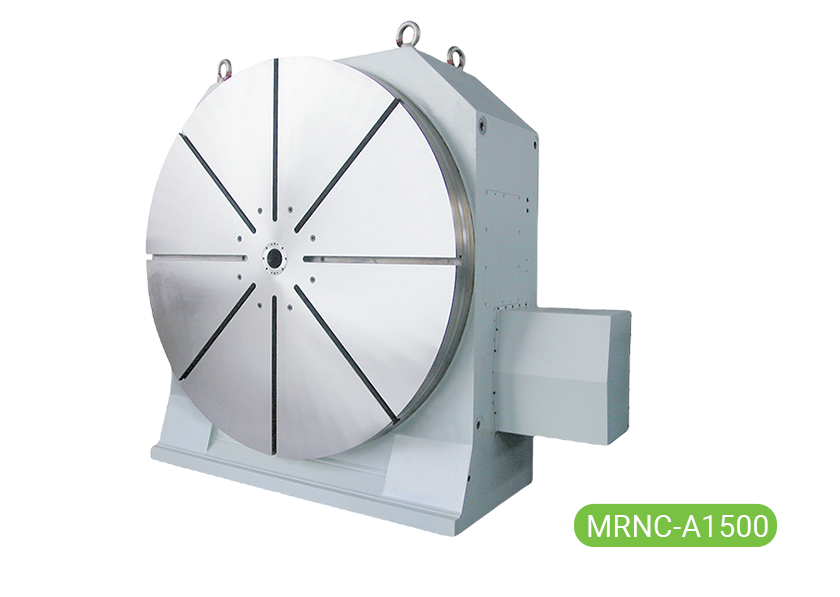

CNC Rotary Table
MRNC - HD800 • 1000A • 1500A
Feature
  • Worktable diameter Ø800, Ø1000, Ø1500mm.(Vertical & Horizontal applications)
  • Dual lead worm drive for greater transmission torque.
  • Hydraulic clamping system assures powerful clamping.
  • Minimum increment 0.001°.
  • M
  • R
  • NC
    • -
  • □
  • 800
  1. Hydraulic system
    Vertical & Horizontal
    both applications
  2. 0.001° Positioning
  3. Servo control
  4. Heavy-duty
  5. Table diameter
Specifications / Model Unit MRNC-HD800 MRNC-1000A MRNC-1500A
Worktable Diameter mm Ø800 Ø1000 Ø1500
Table Height Horizontal mm 464 530 720
Center Height Vertical mm 440 650 900
Overall Height mm 840 1150 1650
Center Bore Diameter mm Ø300H7 Ø100H7 Ø75H7
Through-Hole Diameter mm Ø300 Ø120 Ø120
Width Of T-Slot mm 18H7 22H7 22H7
Width Of Guide Block mm 22h7 22h7 28h7
Minimum Input Increment deg. 0.001° 0.001° 0.001°
Indexing Accuracy sec. 15" 15" 15"
Repeatability sec. 4" 4" 4"
Servo Motor
(Model As Required)		 FANUC αiF 30 αiF 22 αiF 30
MITSUBISHI HF/HG-453S HF/HG-354S HF/HG-453S
SIEMENS 1FK7103 1FK7101 1FK7103
HEIDENHAIN QSY190C QSY155D QSY190C
Speed Reduction Ratio 1/360 1/360 1/720
Max. Table Rotation Speed r.p.m 5.6 5.6 2.8
Allowable Turntable Torque N.m (kgf.m) 4900(500) 4900(500) 5880(600)
Pressure (Clamping System) kg/cm2 35 (Hyd.) 35 (Hyd.) 35 (Hyd.)
Clamping Torque N.m (kgf.m) 8330(850) 13230(1350) 21560(2200)
Allowable Load Capacity Vertical
kg 2000 1500 3000
Horizontal
kg 6000 3500 8000
With Tail-Stock
kg 4000 3000 6000
MAX.Thrust Load
(Table is clamped)		 Axial force
N (kgf) 100000
(10204)		 92500
(9438)		 98000
(10000)
Radial moment
N.m (kgf.m) 8330
(850)		 13230
(1350)		 21560
(2200)
Tilting moment
N.m (kgf.m) 26000
(2653)		 22050
(2250)		 38220
(3900)
Allowable Inertia Force
J=W.D2/8
 Vertical
kg.m2
(kg.cm.sec2)		 160
(1630)		 190
(1913)		 1265
(12914)
Horizontal
kg.m2
(kg.cm.sec2)		 480
(4900)		 440
(4464)		 2250
(22960)
Net Weight (Motor Excluded) kg 1370 2500 7500
Dimensions

Optional Accessories：Manual tailstock, hydraulic power unit, pneumatic/hydraulic converter, Pioneer single axis controller,manual chuck, hydraulic chuck, and flange.

Dimensions

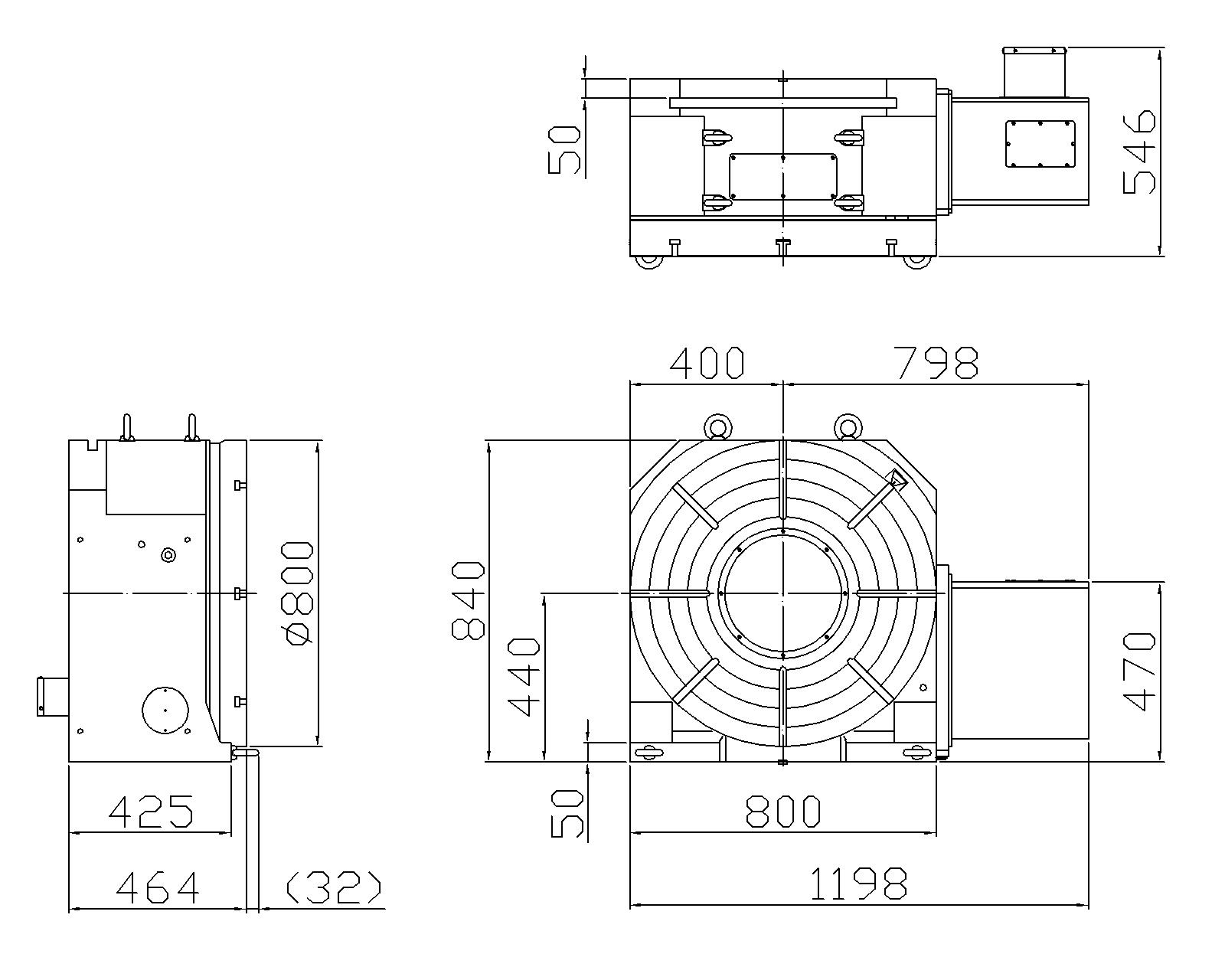

MRNC-HD800

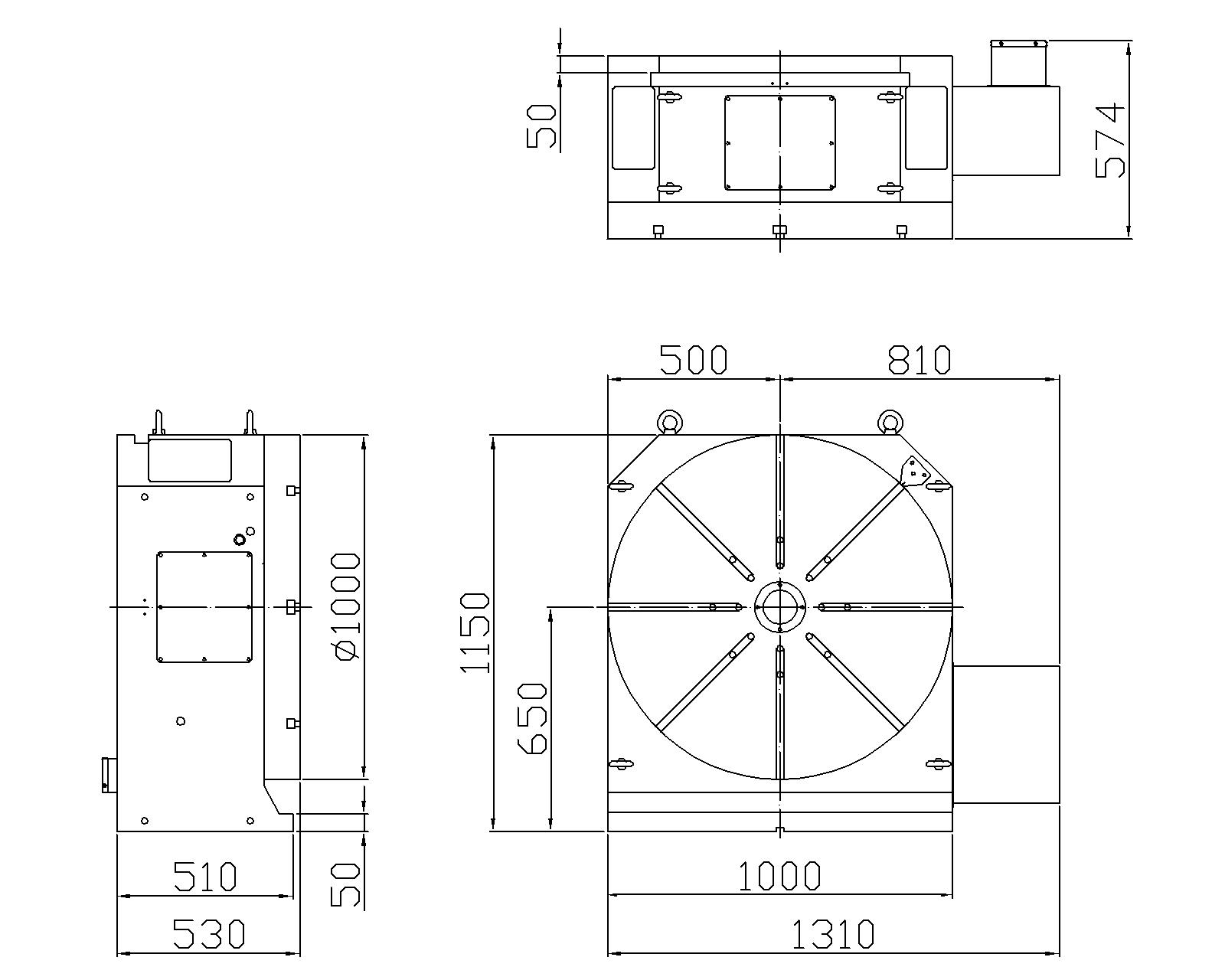

MRNC-1000A

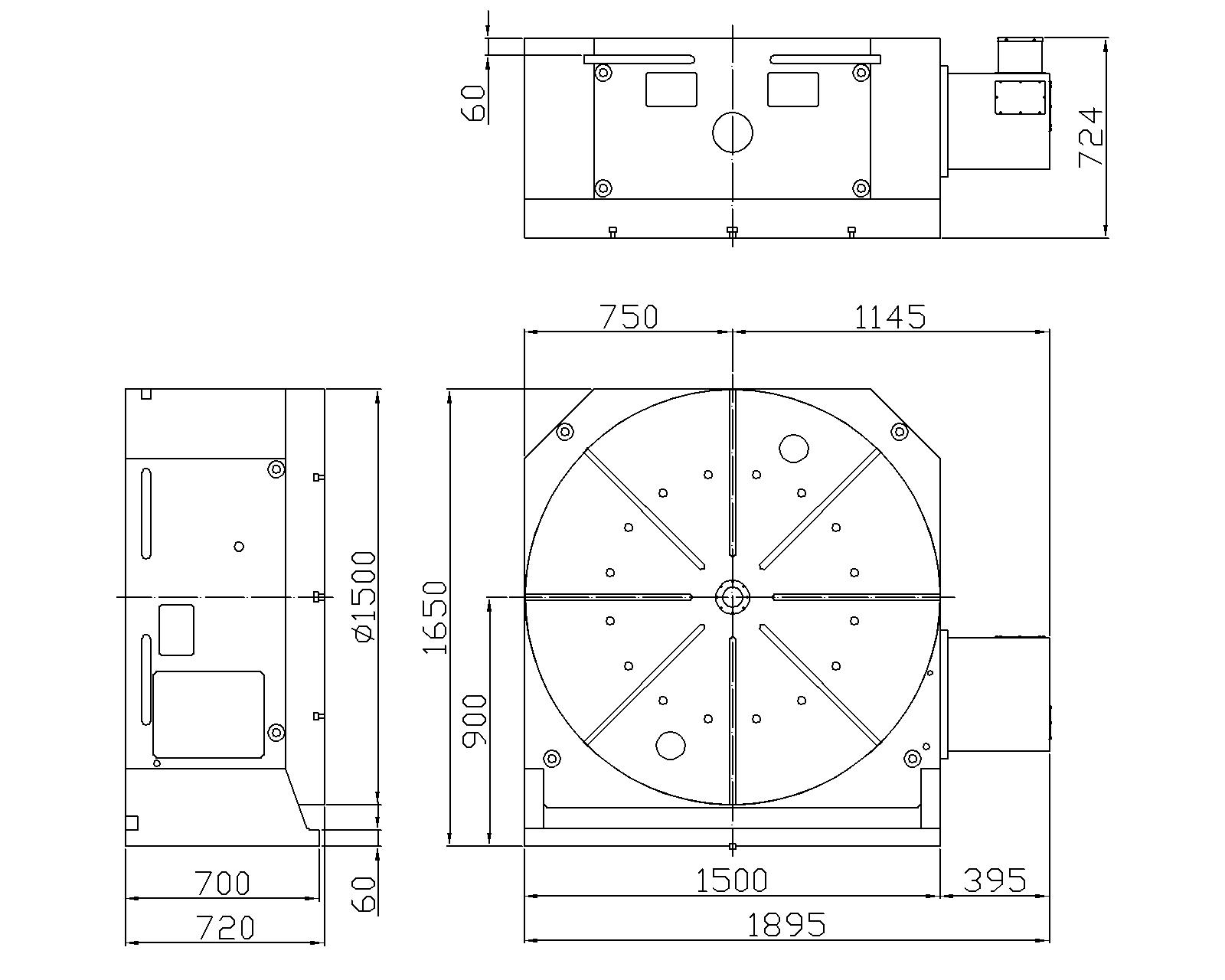

MRNC-1500A
