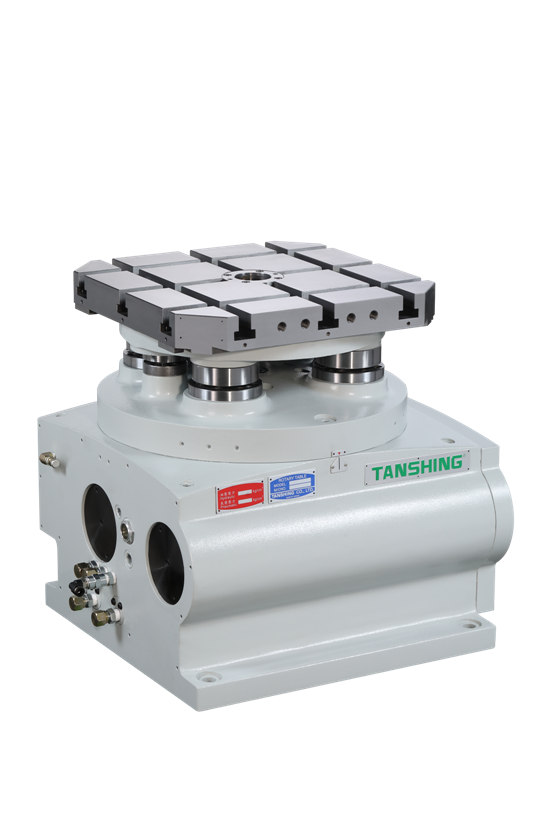

Auto Pallet Changer
ACI - 400S • 500S • 630S/ACIC - 800S • 1000S
Feature
  • Gear coupling position.
  • Clamper of worktable with position cone or roller plate type.
  • Auto exchange worktable to coordinate with APC.
  • Minimum increment 1°.
  • Running / Accuracy test 72 hours at least continually.
  • According to design by DIN & ISO standard.
  • AC
  • I
  • □
    • -
  • 400
  • □
    • -
  • □
  1. Table for horizontal machining center
  2. Indexing
  3. Clamping type for pallet
    None：position cone
    C：roller plate
  4. Table size
  5. Table form
    S：Square
    None：Round
  6. Interface type
    AT：Flat bottom
    BT：Boxway
    CT：Linear
Specifications / Model Unit ACI-400S-□ ACI-500S-□ ACI-630S-□ ACIC-800S-□ ACIC-1000S-□
Pallet Clamping Mode 　 Position Cone Position Cone Position Cone Roller Plate Roller Plate
Indexing angle deg. 1° 1° 1° 1° 1°
Worktable Diameter mm 400x400 500x500 630x630 800x800 1000x1000
Overall Height mm 500 380 522 500 551
Center Bore Diameter mm Ø50H7 Ø50H7 Ø50H7 Ø50H7 －
Width Of T-Slot / Screw holes mm 18H7 18H7/M16xP2.0 18H7/M16xP2.0 18H7 22H7
Indexing Accuracy sec. ±5" ±5" ±5" ±5" ±5"
Repeatability sec. ±1" ±1" ±1" ±1" ±2"
Pallet Clamping Pressure kg/cm2 35 35 35 35 35
Pallet Clamping Torque N (kgf) 24500(2500) 29400(3000) 39200(4000) 58800(6000) 117600(12000)
Worktable Clamping Pressure kg/cm2 50 50 50 35 35
Worktable Clamping Torque N (kgf) 22050(2250) 22050(2250) 364560(3750) 364560(3750) 364560(3750)
Allowable Turntable Torque N.m (kgf.m) 3136(320) 4508(460) 6076(620) 7252(740) 9310(950)
Servo Motor
(Model As Required)		 FANUC 　 αiF 12 αiF 12 αiF 12 αiF 22 αiF 22
MITSUBISHI 　 HF/HG-204S HF/HG-204S HF/HG-204S HF/HG-354S HF/HG-354S
SIEMENS 　 1FK7083 1FK7083 1FK7083 1FK7101 1FK7101
HEIDENHAIN 　 QSY155B QSY155B QSY155B QSY155D QSY155D
Speed Reduction Ratio 　 1/180 1/180 1/180 1/180 1/360
Max. Table Rotation Speed r.p.m 16.6 16.6 16.6 16.6 8.33
Allowable Load Capacity
 Horizontal
kg 500 800 1200 2000 3000
MAX.Thrust Load
(Table is clamped)		 Axial force
N (kgf) 58800(6000) 68600(7000) 76440(7800) 88200(9000) 98000(10000)
Radial moment
N.m (kgf.m) 5390(550) 8134(830) 10290(1050) 11858(1210) 16170(1650)
Tilting moment
N.m (kgf.m) 7546(770) 11368(1160) 14700(1500) 17150(1750) 33638(2310)
Allowable Inertia Force J=W.D2/8
kg.m2
(kg.cm.sec2 )		 10(102) 18.7(255) 62(633) 160(1633) 375(3827)
Net Weight (Motor Excluded) kg 440 650 850 1450 2600
Dimensions
Dimensions

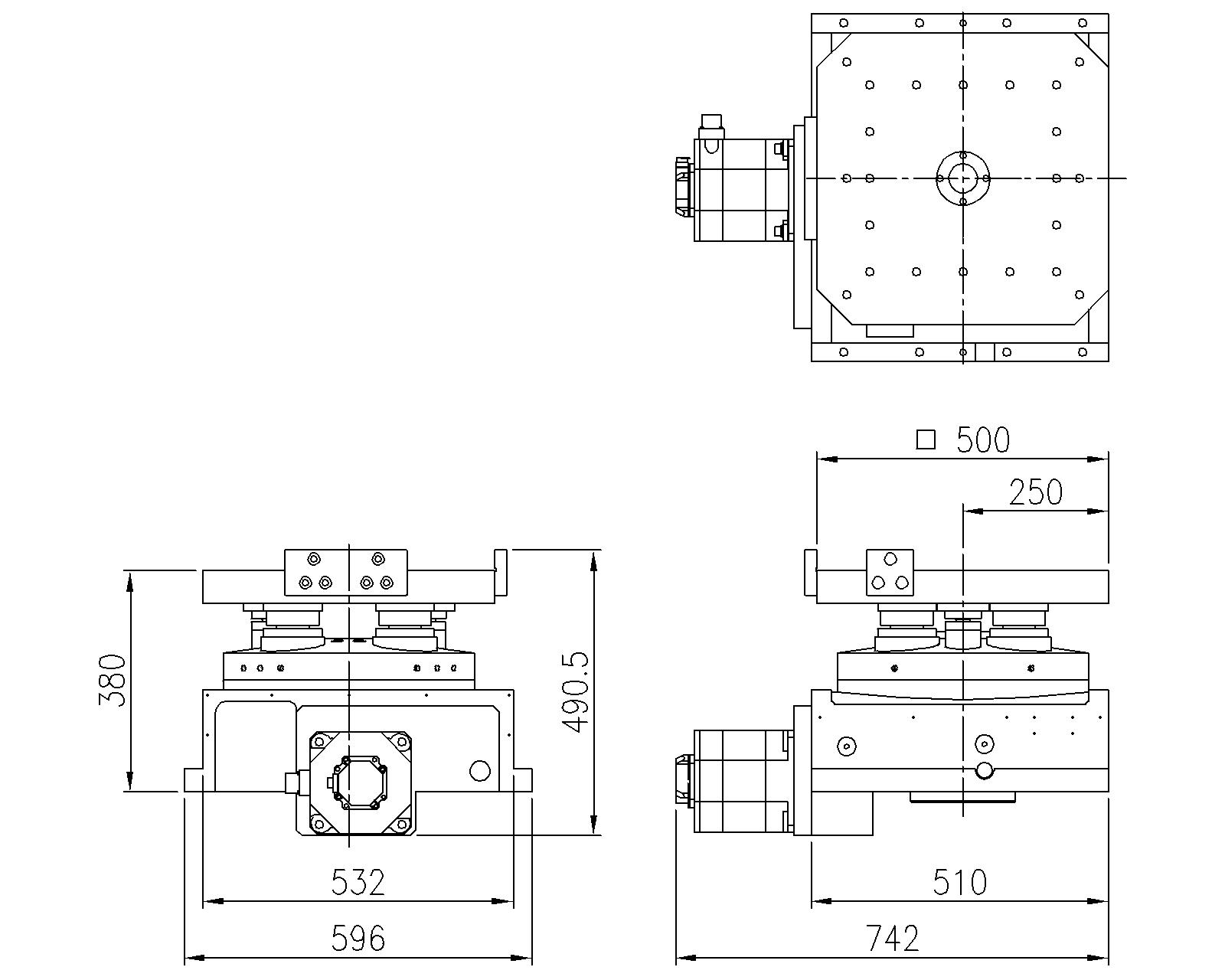

ACI-500S-AT

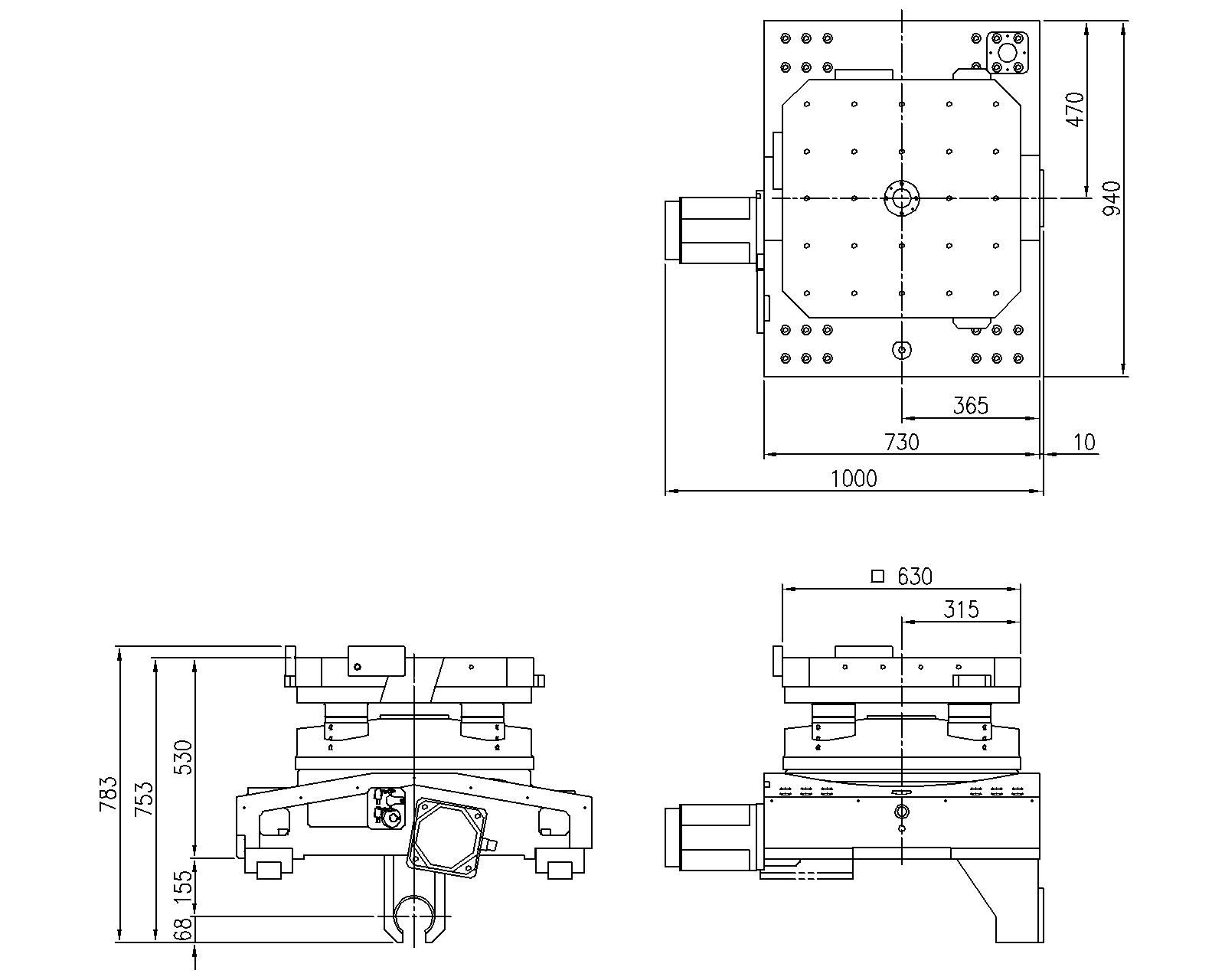

ACI-630S-CT

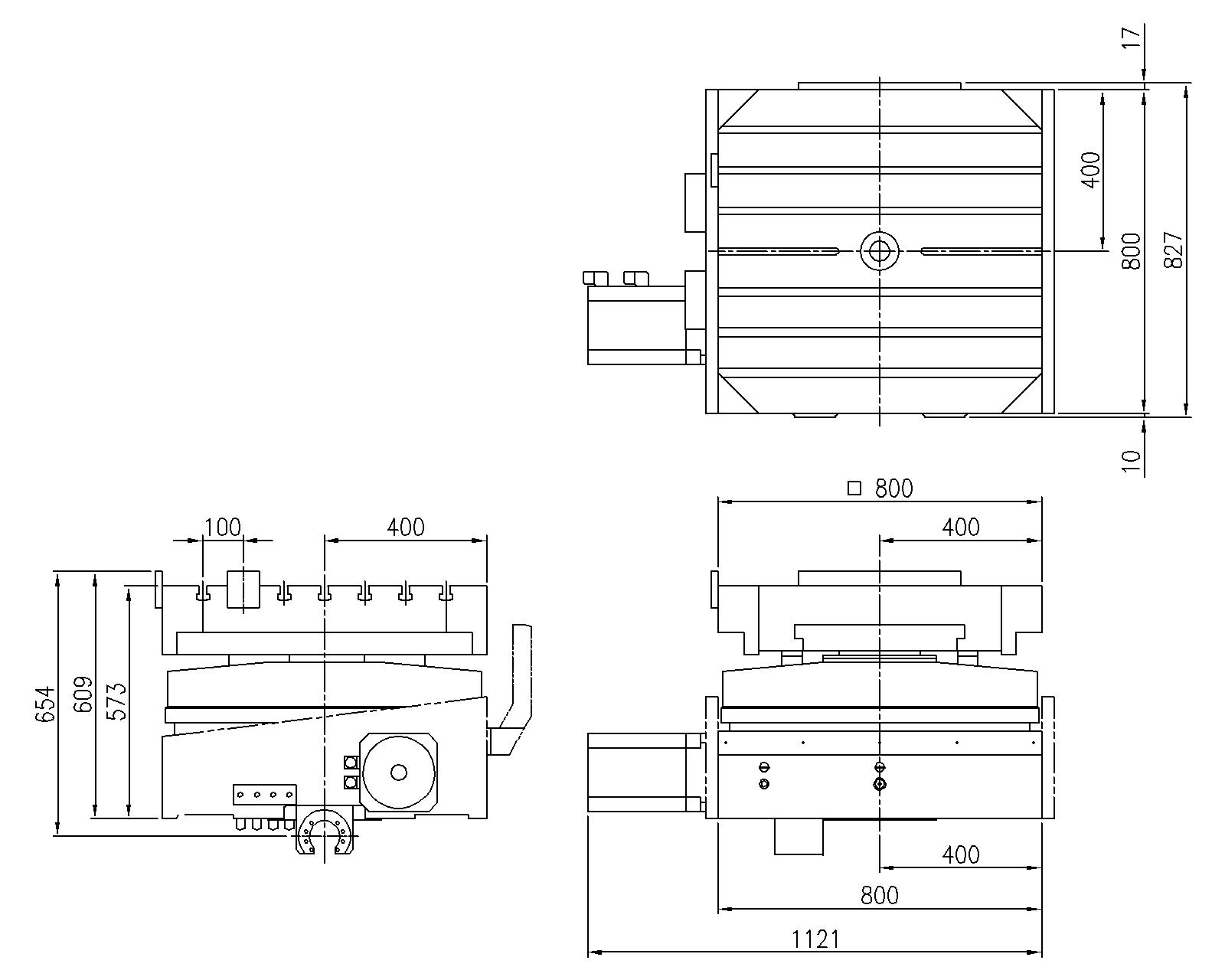

ACIC-800S-CT

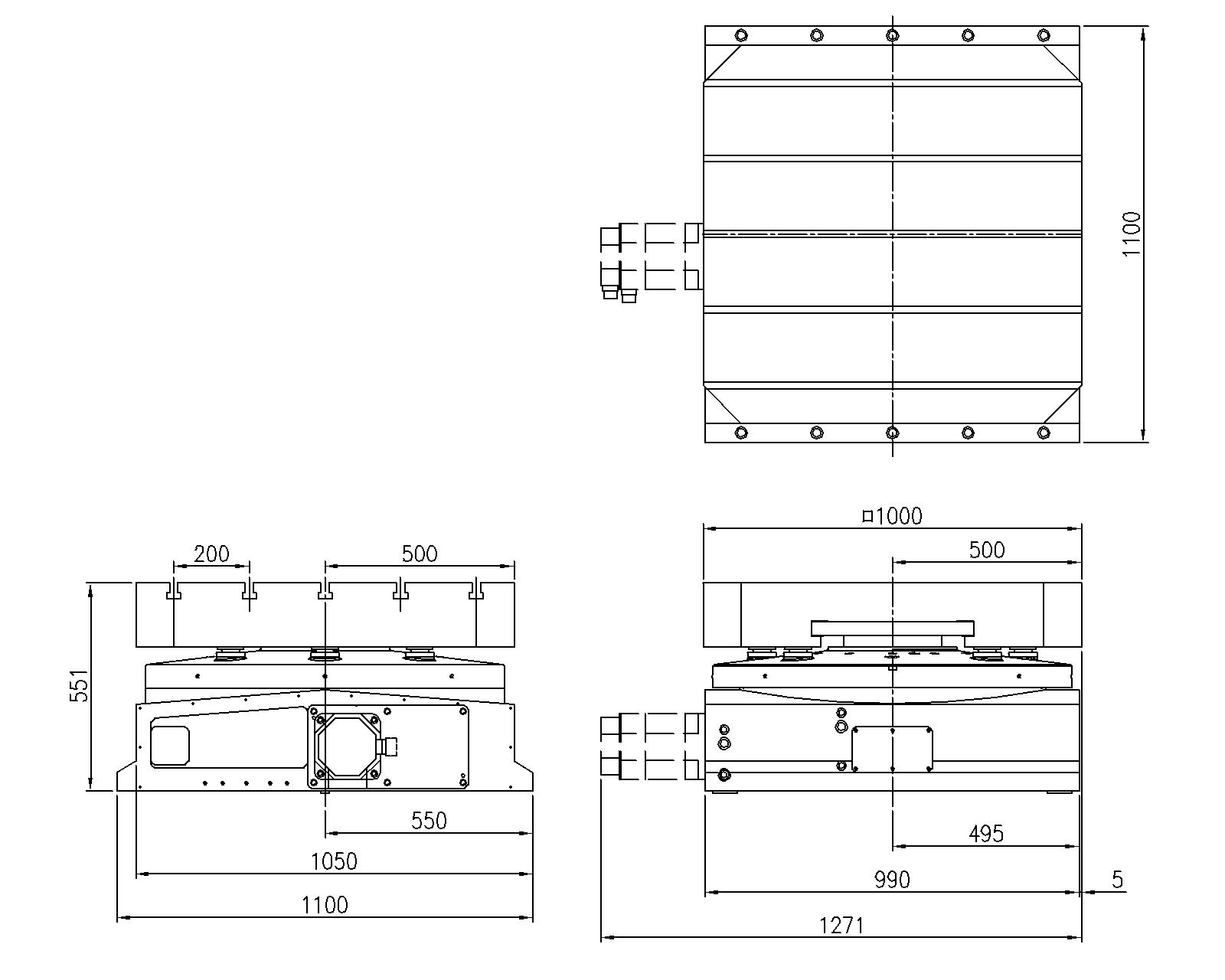

ACIC-1000S-AT
