CNC Index Table
HINC - 400S • A500S • 630S • 800S • A1000S
Feature
  • High precision 3-piece gear clutch provides high positioning accuracy and table won't be risen.
  • Servo motor drive combined with gear clutch positioning makes the unit suitable for flexible angular machining.
  • Dual lead worm transmission provides minimum positioning time and allows for reversible rotation.
  • Powerful hydraulic clamping system suits heavy duty machining.
  • Can be online with CNC boring machine to serve as a fourth spindle, or used together as a single axis controller.

Exclusive 3-pieces coupling

  • H
  • I
  • NC
    • -
  • 630
    • -
  • □
  1. Hydraulic system
    Horizontal machining
  2. Indexing
  3. Servo control
  4. Table size
  5. Table type
    S：Square
Specifications / Model Unit HINC-400S HINC-A500S HINC-630S HINC-800S HINC-A1000S
Application Machine Type   Horizontal Horizontal Horizontal Horizontal Horizontal
Worktable Diameter mm 400X400 500X500 630X630 800X800 1000X1000
Table Height mm 280 290 330 380 400
Through-Hole Diameter mm Ø120H7 Dep.15 Ø120H7 Dep.15 Ø50H7 Dep.15 Ø50H7 Dep.28 Ø60H7 Dep.28
Width Of T-Slot mm 18H7 18H7 18H7 22H7 22H7
Indexing Angle deg. 1°  or  5° 1°  or  5° 1°  or  5° 1°  or  5° 1°  or  5°
Indexing Accuracy sec. ±5" ±5" ±5" ±5" ±5"
Repeatability sec. ±1" ±1" ±1" ±1" ±1"
Servo Motor
(Model As Required)		 FANUC αiF 12 αiF 12 αiF 12 αiF 22 αiF 22
MITSUBISHI HF/HG-204S HF/HG-204S HF/HG-204S HF/HG-354S HF/HG-354S
SIEMENS 1FK7083 1FK7083 1FK7083 1FK7101 1FK7101
HEIDENHAIN QSY155B QSY155B QSY155B QSY155D QSY155D
Speed Reduction Ratio 1/120 1/180 1/180 1/180 1/360
Max. Table Rotation Speed r.p.m 25 16.6 16.6 16.6 5.6
Pressure (Clamping System)
 kg/cm2 35 (Hyd.) 35 (Hyd.) 35 (Hyd.) 35 (Hyd.) 35 (Hyd.)
Clamping Torque N (kgf) 4900(500) 6370(650) 33320(3400) 51940(5300) 51940(5300)
Allowable Load Capacity Horizontal
kg 500 700 2500 3000 5000
MAX.Thrust Load
(Table is clamped)		 Axial force
N (kgf) 30000
(3060)		 40000
(4080)		 55000
(5612)		 94080
(9600)		 98000
(10000)
Radial moment
N.m (kgf.m) 4900
(500)		 6370
(650)		 8232
(840)		 19110
(1950)		 16170
(1650)
Tilting moment
N.m (kgf.m) 5390
(550)		 6370
(650)		 19404
(1980)		 39200
(4000)		 22638
(2310)
Net Weight (Motor Excluded) kg - - 800 1000 2000
Dimensions

Note：There are circle and square of worktable for choice or depend on design from customer's requirement.

Dimensions

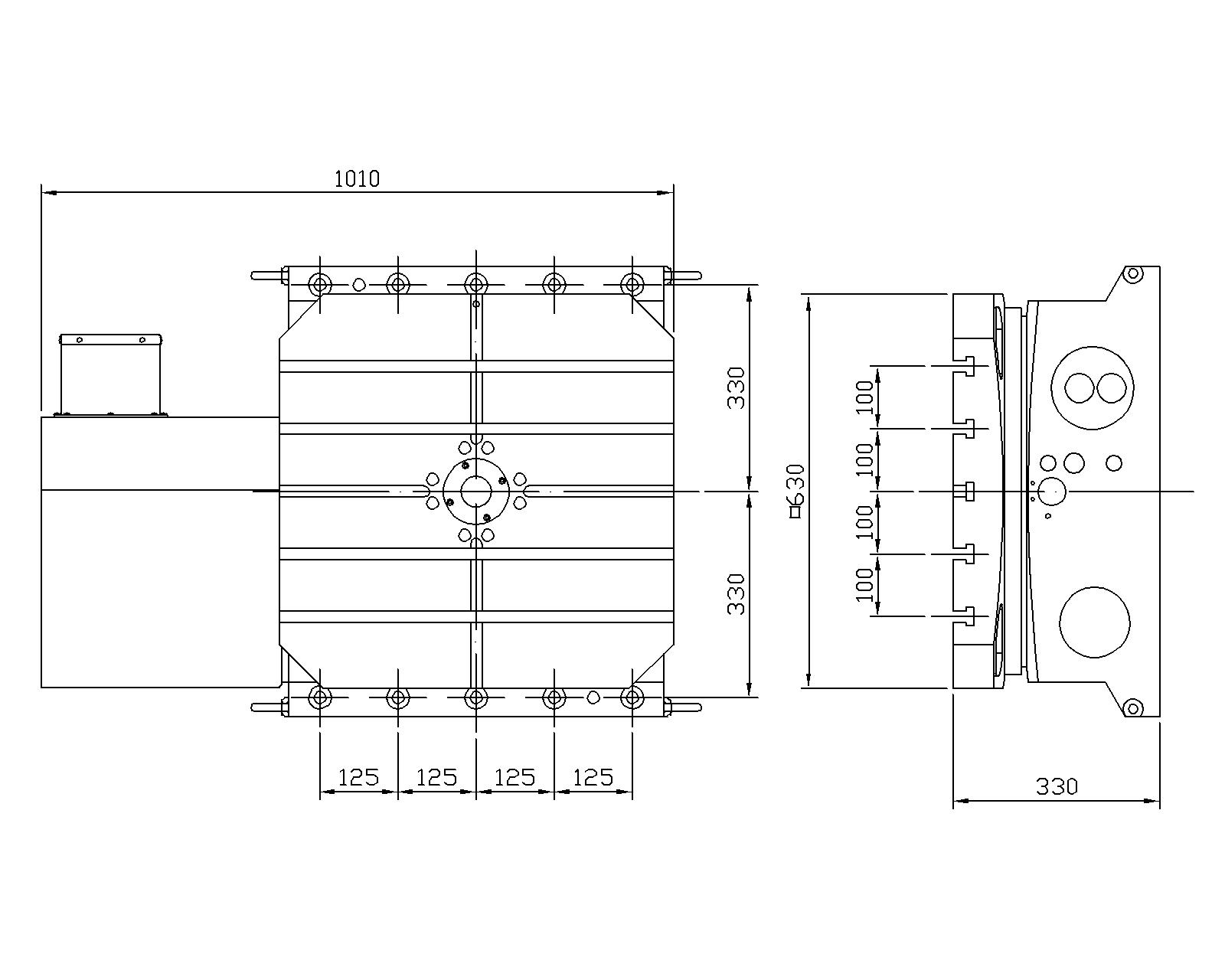

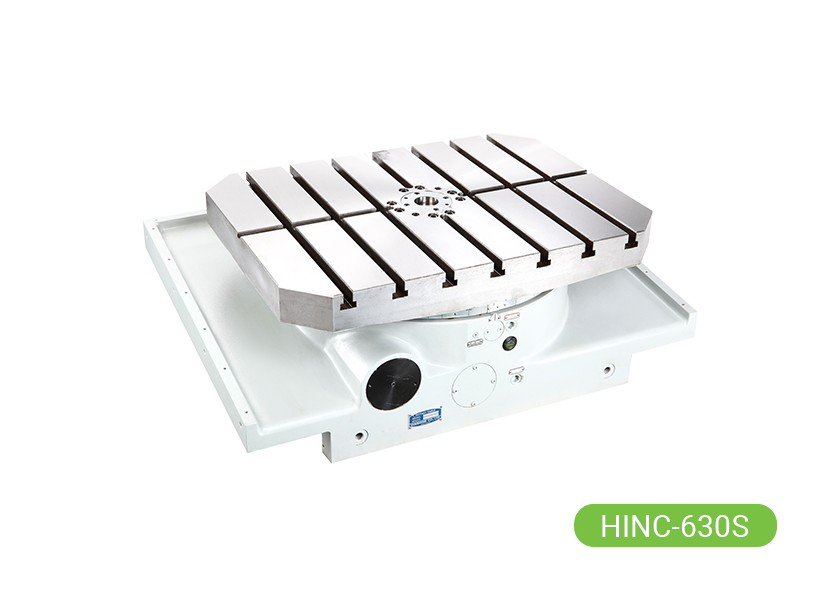

HINC-630S

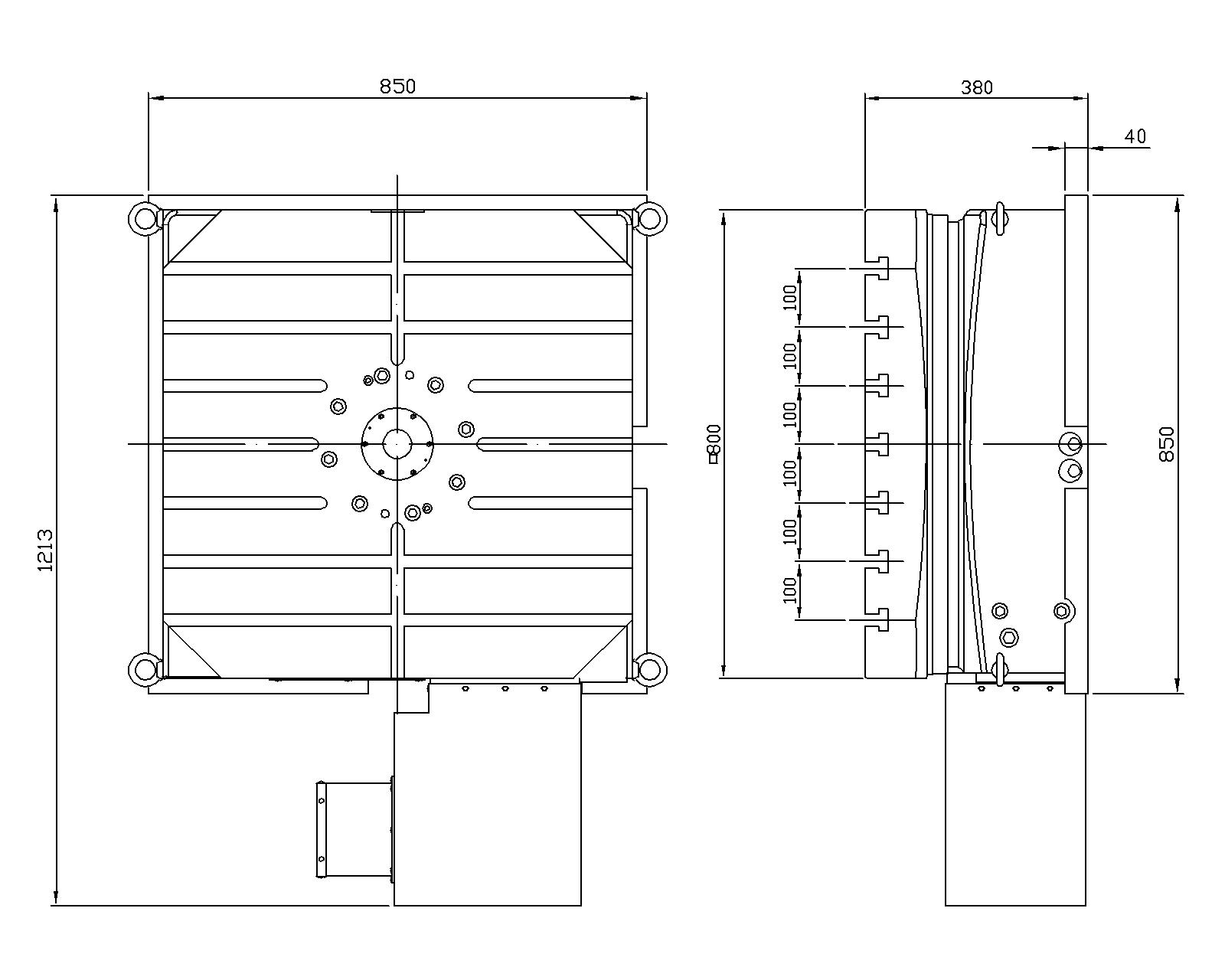

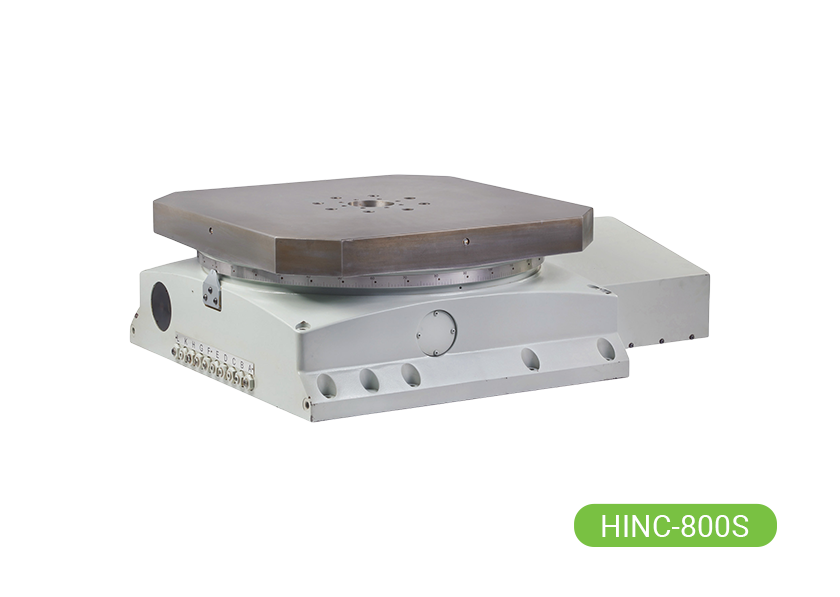

HINC-800S
